best lathe machine price factory direct supply for auto parts

best lathe machine price factory direct supply for auto parts
  • best lathe machine price factory direct supply for auto parts
  • best lathe machine price factory direct supply for auto parts

best lathe machine price factory direct supply for auto parts

GUANGDONG Sunny CNC Machinery Co.,Ltd. combines the design, production, sales and service of lathe machine price .
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. SUNNY desktop cnc lathe comes in a wide variety of design styles. The product has the advantage of strong flexibility
2. This kind of product can improve the working efficiency of work staff. The operation process is very simple and convenient. The product is designed based on ergonomics
3. The product is tested by our QC team who regards the testing as an important factor of product performance. Thus, the conducted testing is highly in line with international testing standards. It has a characteristic of wonderful wearing resistance
4. Products must be inspected through our inspection system to ensure that quality meets industry requirements. Its structure is compact and not easy to be deformed

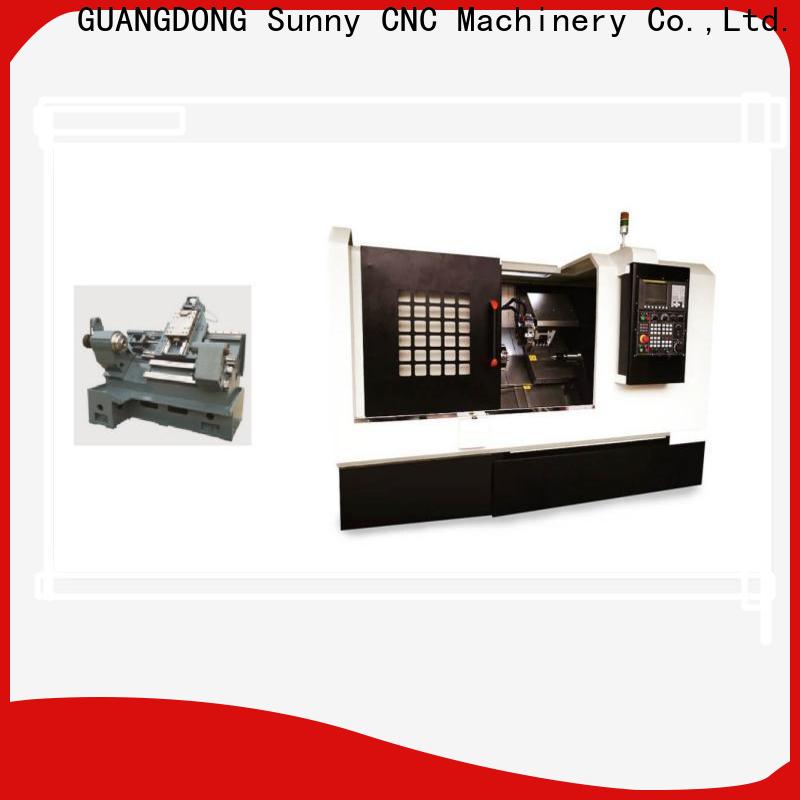

Machine Overview and Functional Characteristics of SY-46X-W
best lathe machine price factory direct supply for auto parts-1

● 49.Inheriting the excellent design foundation of MXC-46 series, our machine MDW series has high performance. While adopting the 30° inclined bed and low center of gravity, using new type cutter tower (selection) design, it not only can realize high speed feed and high speed cutting, but also greatly improves the milling horsepower, providing users with a wider range of processing application. In addition, the solid exterior dimensions and excellent price/function ratio are in line with the basic requirements of general processing tasks.
● The 30°inclined bed structure makes it easy for the operator to function and the chip removal is smooth.
● Our machine uses industrial rubber covered special steel sheet and stainless steel slide rail cover to guarantee the durability of lathes.
● All-covered protective sheet metal will cut iron scraps and coolant in the machine to provide a safe and clean working environment for you.
● The automatic lubrication system provides precision-adjusted lubricating oil for slides, ball-guide screws and other important components. The lubricating oil distribution system will shut down automatically on standby to avoid waste.

● When machining long type work pieces, the standard manual tailstock with movable thimble provides enough support to maintain the machining accuracy of the full stroke. The tailstock is moved to the saddle and moved to the desired position by moving the block to the saddle. The chosen power cutter tower and C axis control make MDW-6630 series turn into the turn-milling composite center, which can process a work piece in the same lathe, such as turning, milling, drilling and tapping. This special design can avoid these errors caused by the movement of work pieces between machines, and save time and manpower for processing.


 Machine Technical Parameters


TypeItemsUnitsParameterStandard Configuration
SpindleSwing over bedmmΦ420Machine tool x1
 Saddle top swingmmΦ230Cooling system x1
 Bar hole diametermmΦ46Hydraulic system x1
 Maximum spindle speedrpm4000Lubricating device x1


Maximum machining workpiece lengt

mm550Internal lighting device x1
Maximum strokeX axialmm850Precise 6-inch chuck(a pair of soft claw included)
 Z axialmm300Cylindrical square tool holder x1
Rapid moving speedX axialm/min26Inner hole honing tool holder x3
 Z axialm/min26Side knife block x10
ToolNumber of tool tower mounting cutter holderpcs12Foot adjuster x1
 Outer diameter tool handle sizemm16*16/20*20Random tools and tool cabinet x1
 Inner diameter tool bar diametermm20/25Foot switch x1
MotorSpindle motor powerkw5.5Technical manual x1
 X axis motor powerkw1.3
 Z axis motor powerkw1.3
 Lubricating pump motor powerkw0.04
 Cooling pump motor powerkw0.18
 Hydraulic station motor powerkw0.75Optional device
Guide rail and screw rodGuide rail type Linear guide railTwelve station servo power \cutter tower
 Width of X guide railmm25Chain plate type automatic chip removal machine

Width of Z guide railmm30
 Ball screw diametermm32Oil bath type automatic feeder
 Screw pitch of ball screwmm10Different models of tool apron
Other descriptionsCooling tank capacityL100
 Hydraulic station capacityL30
 Lubricating device capacityL3
 Total machine powerKVA12
 Average power consumption of continuous usagekW·h2.5
 Spindle center above the groundmm950
 Machine dimension (Length x width x height)mm2600*1780*1700
 Machine weightkg3500
PrecisionRepeated positioning accuracymm0.0035



 Processing Products


best lathe machine price factory direct supply for auto parts-2

Mechanical And Electrical Products Processing

best lathe machine price factory direct supply for auto parts-3

Flashlight Processing

best lathe machine price factory direct supply for auto parts-4

Auto Parts Processing



Company Features
1. GUANGDONG Sunny CNC Machinery Co.,Ltd. combines the design, production, sales and service of lathe machine price .
2. We have experienced technical designers and manufacturing engineers. They contribute a lot to the functionality, performance, as well as visual appeal of our product.
3. GUANGDONG Sunny CNC Machinery Co.,Ltd. regards high-quality service as the life. Inquire online!
The production of SUNNY adopts lean manufacturing systems. The languages can be automatically deciphered and translated as they are sent to this product
An appealing range of colors, finishes, and details let customers create the they’ve dreamed of. This product is advantageous in lightweight and portability.
SUNNY is manufactured using high-quality raw materials. This product supports the top and front printing exit
SUNNY is produced based on the highest standards. It offers many conveniences for users because it does not need to replace the ribbons and ink cartridges
The production technology of SUNNY has been greatly improved by our dedicated R&D team. This product is very popular in many offices, clothes stores, printing shops, etc
The product is built to last. Thanks to its durable construction, it is able to withstand great abuse under harsh environments. The sound and error alarm can minimize work errors
