custom small cnc machine supplier for LED light

Product Information of custom small cnc machine supplier for LED light

Machine Overview and Functional Characteristics of SY-46X-W

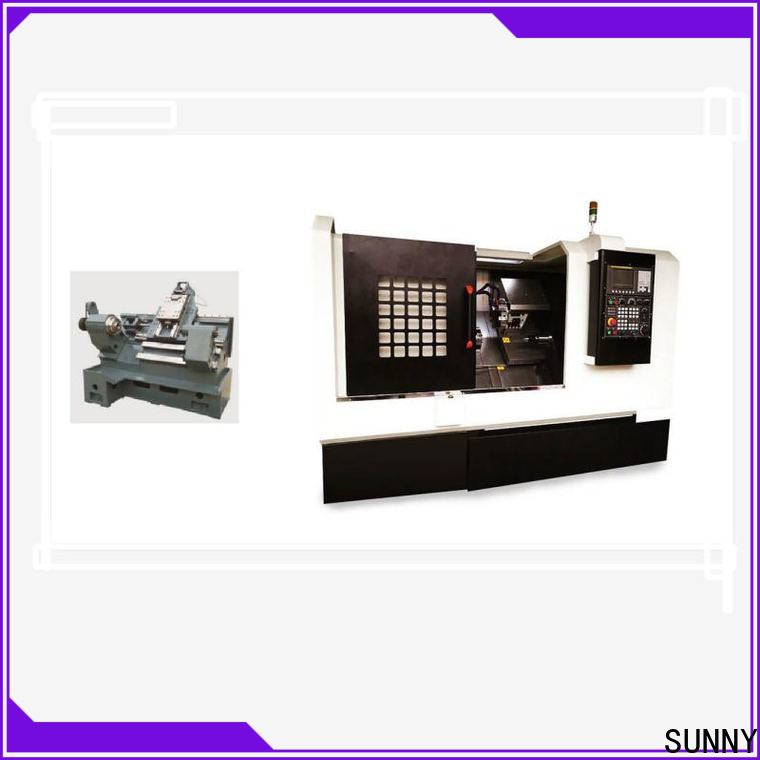

custom small cnc machine supplier for LED light-1

● 49.Inheriting the excellent design foundation of MXC-46 series, our machine MDW series has high performance. While adopting the 30° inclined bed and low center of gravity, using new type cutter tower (selection) design, it not only can realize high speed feed and high speed cutting, but also greatly improves the milling horsepower, providing users with a wider range of processing application. In addition, the solid exterior dimensions and excellent price/function ratio are in line with the basic requirements of general processing tasks.
● The 30°inclined bed structure makes it easy for the operator to function and the chip removal is smooth.
● Our machine uses industrial rubber covered special steel sheet and stainless steel slide rail cover to guarantee the durability of lathes.
● All-covered protective sheet metal will cut iron scraps and coolant in the machine to provide a safe and clean working environment for you.
● The automatic lubrication system provides precision-adjusted lubricating oil for slides, ball-guide screws and other important components. The lubricating oil distribution system will shut down automatically on standby to avoid waste.

● When machining long type work pieces, the standard manual tailstock with movable thimble provides enough support to maintain the machining accuracy of the full stroke. The tailstock is moved to the saddle and moved to the desired position by moving the block to the saddle. The chosen power cutter tower and C axis control make MDW-6630 series turn into the turn-milling composite center, which can process a work piece in the same lathe, such as turning, milling, drilling and tapping. This special design can avoid these errors caused by the movement of work pieces between machines, and save time and manpower for processing.

Machine Technical Parameters

Type	Items	Units	Parameter	Standard Configuration
Spindle	Swing over bed	mm	Φ420	Machine tool x1
	Saddle top swing	mm	Φ230	Cooling system x1
	Bar hole diameter	mm	Φ46	Hydraulic system x1
	Maximum spindle speed	rpm	4000	Lubricating device x1
	Maximum machining workpiece lengt	mm	550	Internal lighting device x1
Maximum stroke	X axial	mm	850	Precise 6-inch chuck（a pair of soft claw included）
	Z axial	mm	300	Cylindrical square tool holder x1
Rapid moving speed	X axial	m/min	26	Inner hole honing tool holder x3
	Z axial	m/min	26	Side knife block x10
Tool	Number of tool tower mounting cutter holder	pcs	12	Foot adjuster x1
	Outer diameter tool handle size	mm	1616/2020	Random tools and tool cabinet x1
	Inner diameter tool bar diameter	mm	20/25	Foot switch x1
Motor	Spindle motor power	kw	5.5	Technical manual x1
	X axis motor power	kw	1.3
	Z axis motor power	kw	1.3
	Lubricating pump motor power	kw	0.04
	Cooling pump motor power	kw	0.18
	Hydraulic station motor power	kw	0.75	Optional device
Guide rail and screw rod	Guide rail type		Linear guide rail	Twelve station servo power \cutter tower
	Width of X guide rail	mm	25	Chain plate type automatic chip removal machine
	Width of Z guide rail	mm	30
	Ball screw diameter	mm	32	Oil bath type automatic feeder
	Screw pitch of ball screw	mm	10	Different models of tool apron
Other descriptions	Cooling tank capacity	L	100
	Hydraulic station capacity	L	30
	Lubricating device capacity	L	3
	Total machine power	KVA	12
	Average power consumption of continuous usage	kW·h	2.5
	Spindle center above the ground	mm	950
	Machine dimension (Length x width x height)	mm	260017801700
	Machine weight	kg	3500
Precision	Repeated positioning accuracy	mm	0.0035

Processing Products

custom small cnc machine supplier for LED light-2

Mechanical And Electrical Products Processing

custom small cnc machine supplier for LED light-3

Flashlight Processing

custom small cnc machine supplier for LED light-4

Auto Parts Processing
