SUNNY custom lathe machine price with good price for LED light

SUNNY custom lathe machine price with good price for LED light

Brand
SUNNY
MOQ
1set
Payment
T/T
Certification
ISO
Delivery Time
30 days after received the 30% deposit
Delivery Port
JIANGMEN
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:


Machine Overview and Functional Characteristics of SY-46X-W

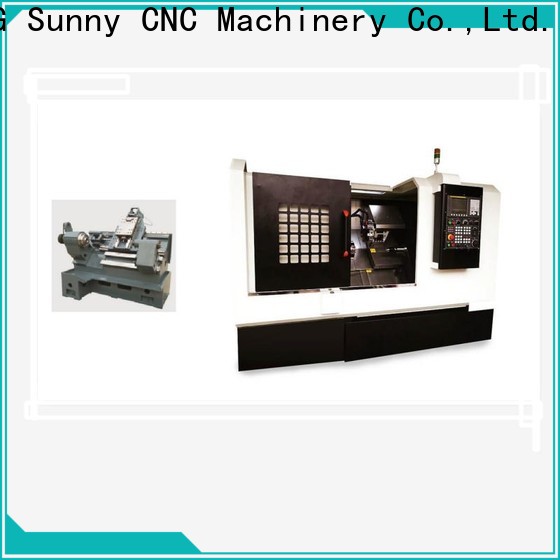

SUNNY custom lathe machine price with good price for LED light-1

● 49.Inheriting the excellent design foundation of MXC-46 series, our machine MDW series has high performance. While adopting the 30° inclined bed and low center of gravity, using new type cutter tower (selection) design, it not only can realize high speed feed and high speed cutting, but also greatly improves the milling horsepower, providing users with a wider range of processing application. In addition, the solid exterior dimensions and excellent price/function ratio are in line with the basic requirements of general processing tasks.
● The 30°inclined bed structure makes it easy for the operator to function and the chip removal is smooth.
● Our machine uses industrial rubber covered special steel sheet and stainless steel slide rail cover to guarantee the durability of lathes.
● All-covered protective sheet metal will cut iron scraps and coolant in the machine to provide a safe and clean working environment for you.
● The automatic lubrication system provides precision-adjusted lubricating oil for slides, ball-guide screws and other important components. The lubricating oil distribution system will shut down automatically on standby to avoid waste.

● When machining long type work pieces, the standard manual tailstock with movable thimble provides enough support to maintain the machining accuracy of the full stroke. The tailstock is moved to the saddle and moved to the desired position by moving the block to the saddle. The chosen power cutter tower and C axis control make MDW-6630 series turn into the turn-milling composite center, which can process a work piece in the same lathe, such as turning, milling, drilling and tapping. This special design can avoid these errors caused by the movement of work pieces between machines, and save time and manpower for processing.


 Machine Technical Parameters


TypeItemsUnitsParameterStandard Configuration
SpindleSwing over bedmmΦ420Machine tool x1
 Saddle top swingmmΦ230Cooling system x1
 Bar hole diametermmΦ46Hydraulic system x1
 Maximum spindle speedrpm4000Lubricating device x1


Maximum machining workpiece lengt

mm550Internal lighting device x1
Maximum strokeX axialmm850Precise 6-inch chuck(a pair of soft claw included)
 Z axialmm300Cylindrical square tool holder x1
Rapid moving speedX axialm/min26Inner hole honing tool holder x3
 Z axialm/min26Side knife block x10
ToolNumber of tool tower mounting cutter holderpcs12Foot adjuster x1
 Outer diameter tool handle sizemm16*16/20*20Random tools and tool cabinet x1
 Inner diameter tool bar diametermm20/25Foot switch x1
MotorSpindle motor powerkw5.5Technical manual x1
 X axis motor powerkw1.3
 Z axis motor powerkw1.3
 Lubricating pump motor powerkw0.04
 Cooling pump motor powerkw0.18
 Hydraulic station motor powerkw0.75Optional device
Guide rail and screw rodGuide rail type Linear guide railTwelve station servo power \cutter tower
 Width of X guide railmm25Chain plate type automatic chip removal machine

Width of Z guide railmm30
 Ball screw diametermm32Oil bath type automatic feeder
 Screw pitch of ball screwmm10Different models of tool apron
Other descriptionsCooling tank capacityL100
 Hydraulic station capacityL30
 Lubricating device capacityL3
 Total machine powerKVA12
 Average power consumption of continuous usagekW·h2.5
 Spindle center above the groundmm950
 Machine dimension (Length x width x height)mm2600*1780*1700
 Machine weightkg3500
PrecisionRepeated positioning accuracymm0.0035



 Processing Products


SUNNY custom lathe machine price with good price for LED light-2

Mechanical And Electrical Products Processing

SUNNY custom lathe machine price with good price for LED light-3

Flashlight Processing

SUNNY custom lathe machine price with good price for LED light-4

Auto Parts Processing



The quality of SUNNY is ensured. It has been tested to determine if its structure, mechanical parts are suitable for its intended use. It is proudly manufactured by Unique Group with the scientific and technological innovation accumulated over the past 30 years
SUNNY has experienced a series of appearance inspection procedures, such as fabric color, sewing thread cleanliness and so on. It suits both engineering companies and equipment rental companies_x000D_
SUNNY is professionally designed. Its design is based on outdoor environmental conditions, user preferences and the attractiveness of the building's exterior. This product can survive complicated and harsh geological and meteorological conditions
The design of SUNNY is exquisite. The design process adopts the most advanced design software, such as CAD software. It aims to deliver continuous service and to significantly cut the maintenance and repair expenses of the customers
SUNNY contains many delicate manchineel parts. These components include pumps, compressors, generators and other welded and welded components. It has become an indispensable part to facilitate the construction process
No critical defects can be found on this product, namely hazardous or unsafe conditions or non-compliance with regulations include sharp points or edges, stray needles left in the garment, loose studs or missing suffocation warning labels. Its painting color can be customized to satisfy the needs of different customers
