best small cnc lathe manufacturer for painting equipment accessories

Latest products

Oil Bath Type Feeder

The Main Parts Of A Machine

Ⅴ Cutter Tower Tail Top Machine SY-46X-W

Ⅲ Oblique Rail Cutter Tower Machine SY-36S/46S

Product Information
Feedback

Company Advantages
1. The diverse features of small cnc lathe bring us more and more customers. Its appearance is anti-aging and maintains a brand new status
2. With its mighty strength, GUANGDONG Sunny CNC Machinery Co.,Ltd. provides all- round premium services for its clients. It is free of changing mould or clamp when it processes different parts
3. The product has attractive and bright colors. Treated with thermal dyeing, the coloring agents are thoroughly dissolved and mixed. Its accurate repeat positioning has good consistency on the finished products
4. The product has the advantage of high refractoriness. It can stay chemically and physically stable at constantly changing high temperatures. Its lubrication system can automatically shut down to avoid waste of lubricating oil
5. This product features dimensional stability. Its every detail is tested by high-precision instruments to ensure that the dimensional accuracy is within the controllable range. Its advanced technology enables its safety for users

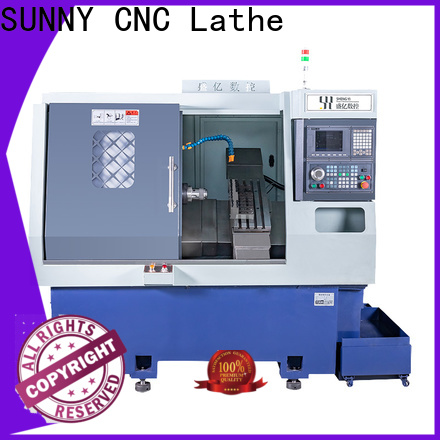

Machine Overview and Functional Characteristics of SY-36C/46C

SUNNY small cnc lathe manufacturer for painting equipment accessories-1

● All of the casts of machine use high-quality resin sand by the process of high-temperature casting. We have implemented a complete annealing program. After 3-6 months’ natural aging treatment, the whole structure of cast iron base is strengthened, so the stability, the antiknock characteristic and the high rigidity of the machine are all enhanced.
● The high shaft box is designed as a special triangular structure and the best span of force is calculated by mechanical engineering mechanics. Built-in Taiwan precision sleeve spindle ensures maximum axial and radial cutting , machining precision.
● The structure of 30° inclined bed type is stable for operation, convenient for mounting and clamping, smooth for removing chips. All the contact surfaces of precision components are made by of precision shovel scraping and running-in.

● 28.Taiwan new generation or Baoyuan controller system makes it very easy to program. With high intelligent technology, it has many functions, such as quick reaction, stable operation and so on.

● The transmission part adopts imported overloaded linear guide rail. The precise ball screw assembly is combined with imported servo motor to drive, so the speed of tool changing is very fast ( 26M/ min), and the precision of repeat positioning is up to 0.0025mm. Our design of system ensures the good quality of machine parts, it also shortens the processing time.
● All precise transmission parts and components are lubricated by microcomputer time quantitative oil supply system , which will be automatically shut down on standby to avoid the waste of lubricating oil.
● The hydraulic system adopts Taiwan electric motor, vane pump and air-cooled device, which is combined with high-speed central control rotary oil cylinder, so it maintains the chucking force of chuck stable and easily to adjust, low noise and low temperature rise.

● The machine tool cover is totally enclosed,which can strongly resist deformation and water. Our machine accords with ergonomics. Its operation is very safe and the shape is also very beautiful.

Machine Technical Parameters

Types	Items	Units	Parameter	Standard Configuration
Spindle	Swing over bed	mm	Φ400	Machine tool x1
	Swing over knife row	mm	Φ100	Cooling system x1
	Bar hole diameter	mm	Φ36/Φ46	Hydraulic system x1
	Maximum spindle speed	rpm	4000	Lubricating device x1
	Spindle hole diameter	mm	Φ45/Φ56	Internal lighting device x1
Maximum stroke	X axial	mm	750	Chuck adapter x1
Maximum stroke	Z axial	mm	280	Collet chuck x2
Rapid moving speed	X axial	m/min	26	Cylindrical cutter holder x2
Rapid moving speed	Z axial	m/min	26	Inner hole cutter holder x4
Tool	Number of tool holder	pcs	10	Lateral cutter holder x3
	Outer diameter tool handle size	mm	2020/1616	Forward and reverse cutter holder x1
	Outer diameter tool handle size	mm	2020/1616	Forward and reverse cutter holder x1
	Inner diameter tool bar diameter	mm	20/25	Foot adjuster x4
	Knife rest above spindle center	mm	50	Random tools and tool cabinet x1
	Knife rest above spindle center	mm	50	Random tools and tool cabinet x1
Motor	Spindle motor power	kw	5.5	Foot switch x1
	X axis motor power	kw	0.85/1.3	Technical manual x1
	Z axis motor power	kw	0.85/1.3
	Lubricating pump motor power	kw	0.04
	Cooling pump motor power	kw	0.18	Optional device
	Hydraulic station motor power	kw	0.75	Oil bath type automatic feeder
Guide rail and screw rod	Guide rail type		Linear guide rail	Precise 5-inch chuck（a pair of soft claw included）
	Width of X guide rail	mm	25	Different models of knife tower and tool apron
	Width of Z guide rail	mm	30
	Ball screw diameter	mm	32	Collet chuck
	Screw pitch of ball screw	mm	10
Other descriptions	Cooling tank capacity	L	40
	Hydraulic station capacity	L	30
	Lubricating device capacity	L	2
	Total machine power	KVA	8
	Average power consumption of continuous usage	kW·h	1.8
	Spindle center above the ground	mm	1050
	Machine dimension (Length x width x height)	mm	200015101650
	Machine weight	kg	2100
Precision	Repeated positioning accuracy	mm	0.0025

Processing Products

SUNNY small cnc lathe manufacturer for painting equipment accessories-2

LED Lighting Accessories

SUNNY small cnc lathe manufacturer for painting equipment accessories-3

The Bathroom Products

SUNNY small cnc lathe manufacturer for painting equipment accessories-4

Copper, Iron and Aluminum

SUNNY small cnc lathe manufacturer for painting equipment accessories-5

Auto Parts

SUNNY small cnc lathe manufacturer for painting equipment accessories-6

Decorative Accessories

Company Features
1. GUANGDONG Sunny CNC Machinery Co.,Ltd. has been regarded as an expert in developing and manufacturing cnc auto lathe machine . We are a rapidly developing company.
2. GUANGDONG Sunny CNC Machinery Co.,Ltd. is outfitted with some of the most innovative manufacturing machines.
3. It's important for us to know that we're performing as efficiently and as sustainably as possible. Our facility is accredited to ISO Standard 14001, which monitors strict environmental standards for activities like control of waste management and contamination.
